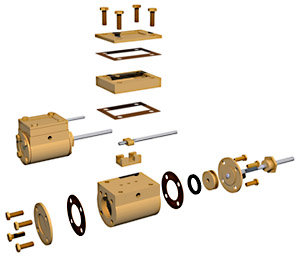

Exploded
view of Gauge 1 loco cylinder assembly
modeled and rendered in AutoCAD R14 |
|
 |

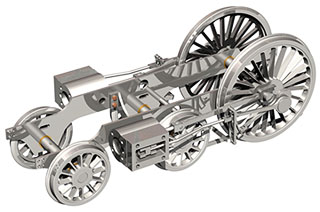

Design
study of Gauge 1 "York"
modeled and rendered in SolidWorks |
|
 |
Cox
Medallion .049
This is a drawing I made nearly 30 years ago. It was
done the old fashioned way - with a board and
"T" square. The drawing tools certainly have
changed over the years, but my love for producing
technical illustrations remains the same.
(click to enlarge) |
|
|
 |
BAGRS
Project Loco aka Basic Project Engine
modeled and rendered in AutoCAD R14 |
|
|
|
Sectioned
view of Gauge 1 loco cylinder assembly
modeled and rendered in AutoCAD R14 |
|
 |
Thimble
engine design
modeled and rendered in SolidWorks |
|
 |
Design
study of reproduction live steam toy train
modeled and rendered in SolidWorks |
HO live steam rocket
modeled in AutoCAD R2002
then exported to SolidWorks for rendering |
|
